Designed To Race

P2AML4 - Mushroom Head Actuator

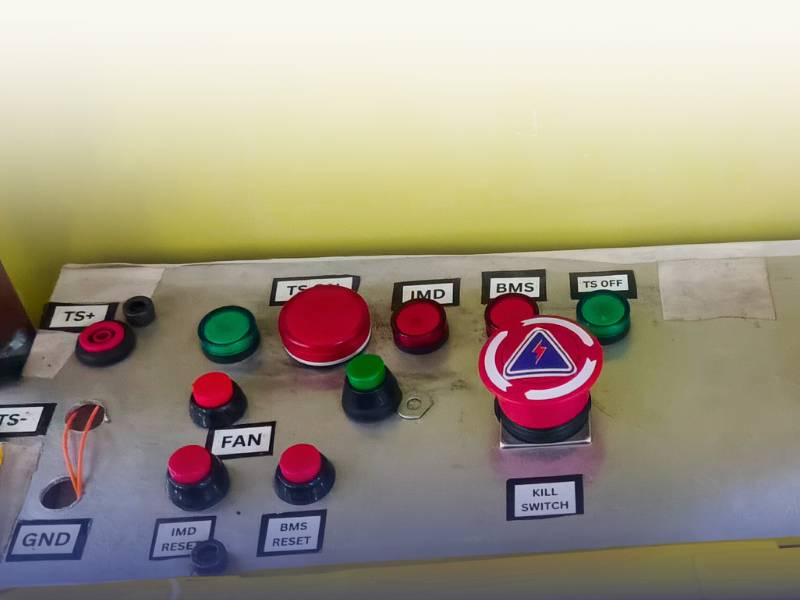

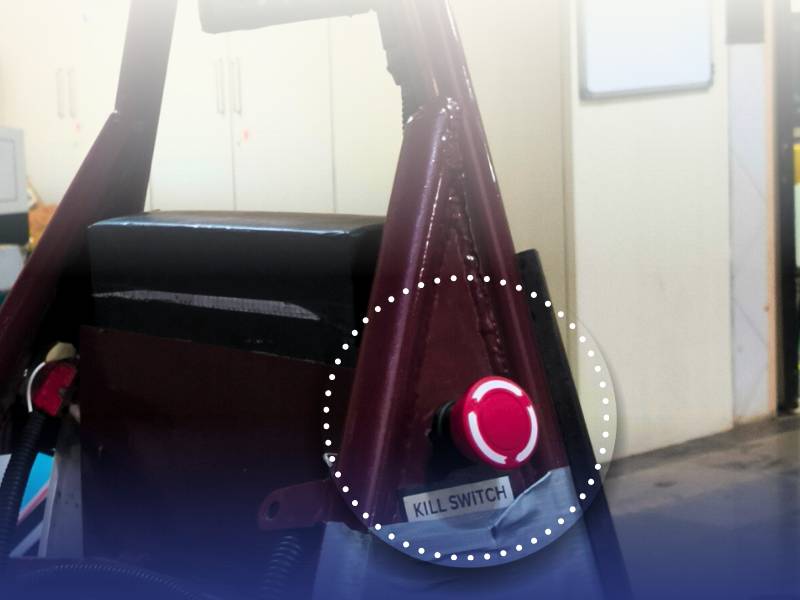

The P2AML4 falls under the Mushroom Head Actuator category and is primarily used as a Stop Actuator for safety control. During their project operations, the team used this component as a "Kill Switch". This allows them to instantly stop the electrical system whenever required, which is a must from an operational safety point of view.

Product Code Breakdown:

• P2A - P2 Plastic Series Actuator
• M - Mushroom Head
• L - Latching Mechanism
• 4 - Red Colour

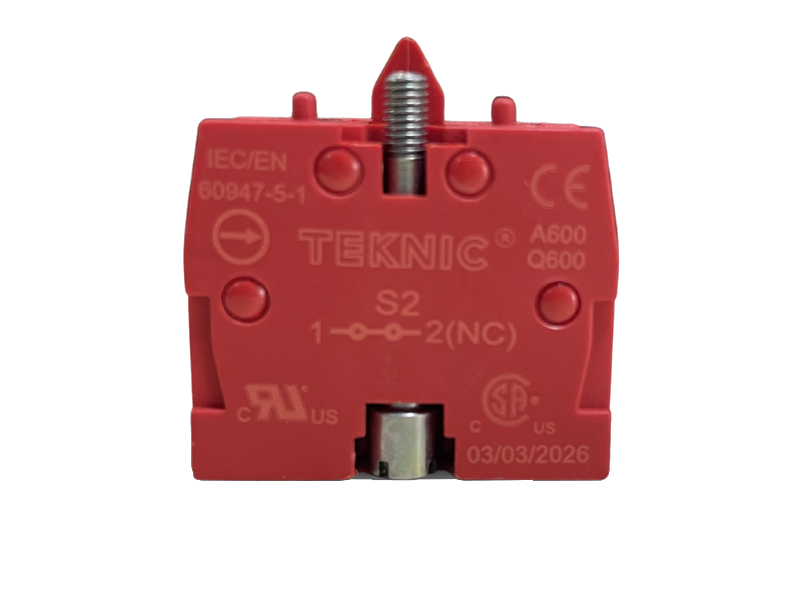

S2 - Contact Element

The S2 Contact Element is a normally closed (NC) panel-mounted contact element.

Function:
When the actuator is pressed, the contact element opens the electrical circuit, interrupting power flow, and enabling the stop functionality.

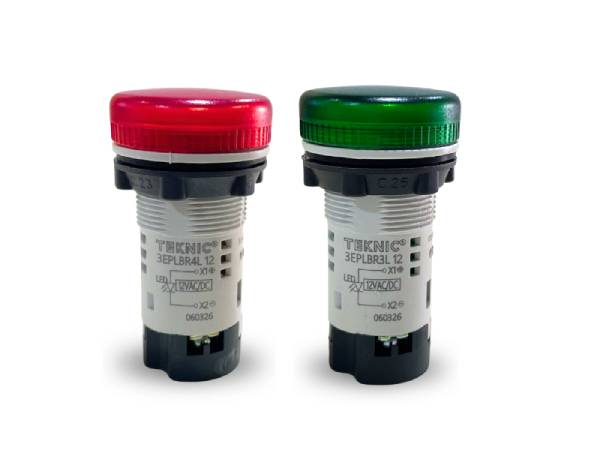

Economy Series Pilot Lights

These products belong to the Economy Series Pilot Lights, which are used as visual indicators to show the operational status of a system.

Function:
Pilot lights illuminate system conditions such as power status, operation mode, or fault indication.

Product Code Breakdown:

• 3EPLBR - Economy Series Pilot Lights with Resistor
• 4L - Red Lamp
• 3L - Green Lamp
